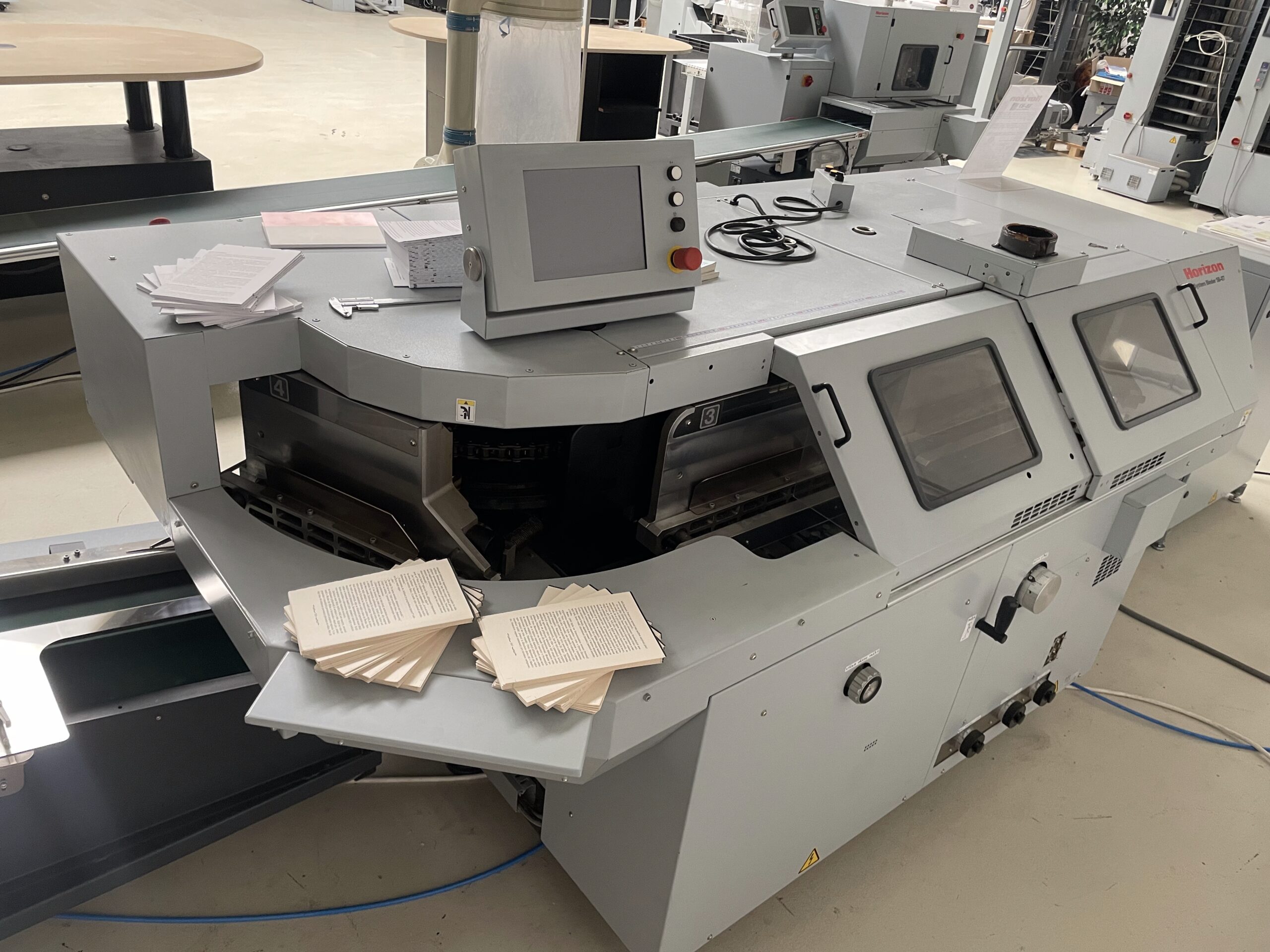

HORIZON SB-07+HT-80
The Horizon SB-07 is a highly versatile seven-clamp perfect binder designed for professional, medium production. In combination with the Horizon HT-80 three-knife trimmer, it forms a fully automated inline system that ensures a smooth workflow from binding to final trimming. This configuration delivers consistently high quality, precise trimming, and efficient changeovers, making it ideal for short-run as well as medium production. With its user-friendly touchscreen operation and intelligent automation, the SB-07 with HT-80 offers printers a reliable solution for producing perfectly bound books with speed, accuracy, and minimal operator intervention.
Year of manufacture or installation: 2016
Counter: 3 600 000
Condition: Cleaned/Adjusted/Perfect condition
| SPECIFICATIONS OF SB-07 | |
| Number of Clamps | 7 |
| Book size |
Max. 400(W) x 320(H) mm (15.74″ x 12.59″) (B4 wide) Min. 135(W) x 105(H) mm (5.32″ x 4.14″) (A6) |
| Book Thickness | 2 to 45 mm (0.08″ to 1.77″) |
| Cover Size (Top-Bottom x Fore-edge) |
Max. 380 x 660 mm (14.96″ x 25.98″) Min. 135 x 220 mm (5.32″ x 8.67″) |
| Cover Weight Range | 82 to 302 gsm Normal Paper 105 to 348 gsm Coated Paper |
| Cover Pile Height |
Max. 150 mm (5.90″) |
| Production Speed | Max. 3,200 books/hr. |
| SPECIFICATIONS OF HT-80 | |
| Untrimmed Book Size | Spine Length x Fore-edge Length Max. 330 x 330 mm or 13” x 13” 350 x 330 mm or 13.78” x 13” (When Using the Optional C-80L) Min. 145 x 105 mm or 5.71” x 4.135” |
| Book size |
Max. 400(W) x 320(H) mm (15.74″ x 12.59″) (B4 wide) Min. 135(W) x 105(H) mm (5.32″ x 4.14″) (A6) |
| Finished Book Size | Spine Length x Fore-edge Length Max. 300 x 300 mm or 11.81” x 11.81” 340 x 300 mm or 13.385” x 11.81” (When Using the Optional C-80L) Min. 139 x 99 mm or 5.475” x 3.9” |
| Cover Size (Top-Bottom x Fore-edge) |
Max. 380 x 660 mm (14.96″ x 25.98″) Min. 135 x 220 mm (5.32″ x 8.67″) |
| Cover Weight Range | 82 to 302 gsm Normal Paper 105 to 348 gsm Coated Paper |
| Trim Width |
Top and bottom: Max. 30 mm or 1.18” each |
| Trim Height | 1 to 51 mm or 0.04″ to 2″ |
| Clamp System and Pressure | Servo Motor 4 kN to 8 kN (10 kN depending on Condition) |
| Production Speed | 400 to 1,000 cycles per hour |
