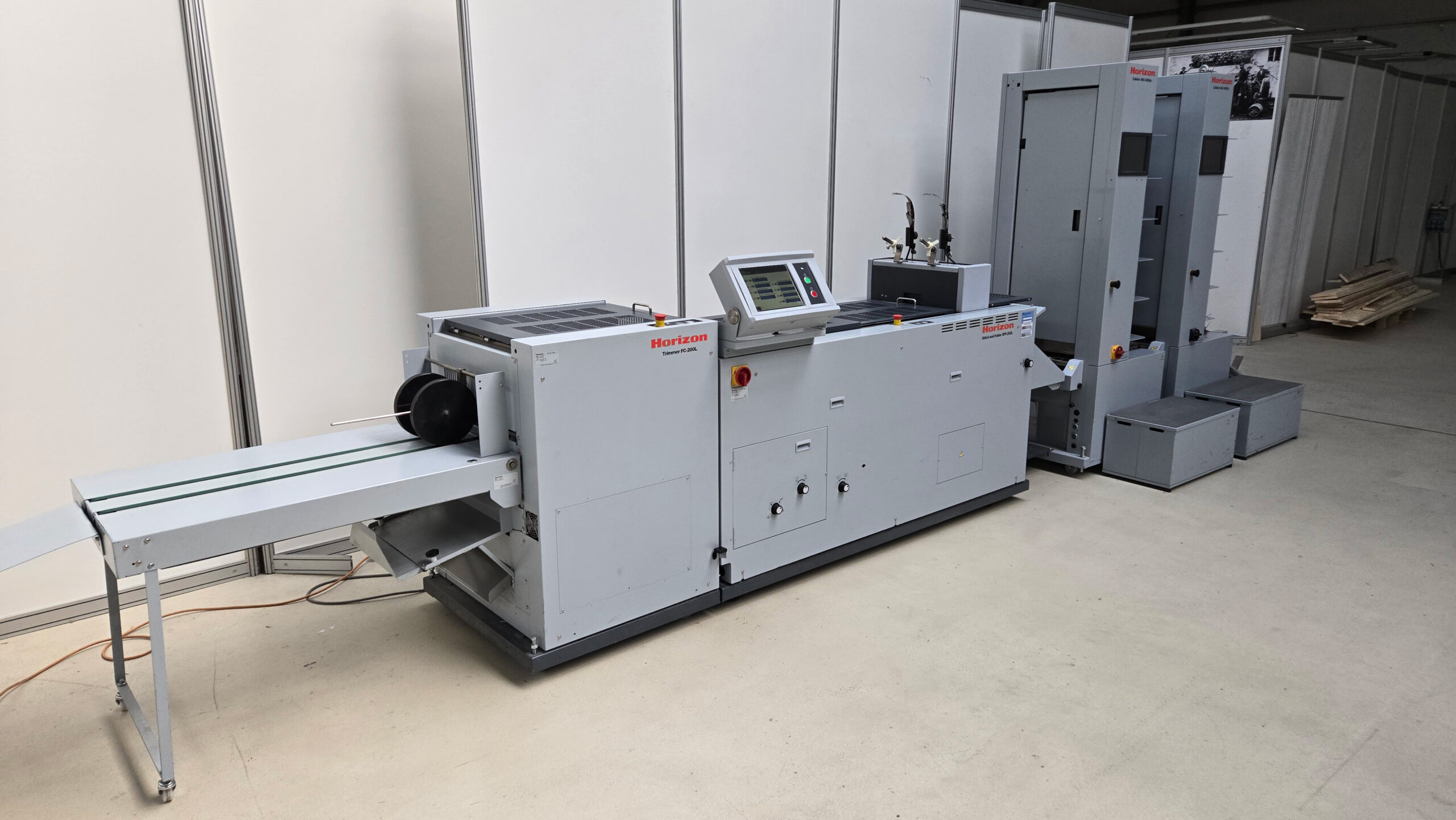

HORIZON SPF 200L + VAC/HOF400
The Horizon SPF-200 Series represents the pinnacle of modern bookletmaking—delivering high productivity, advanced automation, and effortless usability. With fully automatic setup via a large, intuitive 10.4″ color touchscreen, even complex format changes from CD size to A4 landscape (SPF-200L) are completed with speed and precision. Designed to meet the demands of both digital and offset print workflows, the system offers flexible configurations including the HOF-400 feeder and VAC-1000/VAC-600 collator. By eliminating the folding process through the use of pre-cut sheets, the SPF-200 significantly reduces costs while achieving output speeds of up to 4,500 A5 booklets per hour. Ideal for efficient small-lot production, this system sets a new standard in smart bookletmaking.
Year of installation: 2016
Counter: 3 971 909
Condition: Machine is in refurbished department now
| SPECIFICATIONS | |
| Max. brochure size | 356 x 610 mm or 14” x 24” |
| Min. brochure size | 120 x 180 mm or 4.725” x 7.09” |
| Max. Booklet Size | 356 x 305 mm or 14” x 12” |
| Min. Booklet Size | 120 x 90 mm or 4.725” x 3.545” |
| Stitch Thickness Top/Side Stitch, Corner Stitch and Fold |
Max. 4 mm or 0.155” (About 48 sheets of normal paper 64 gsm) |
| Fold Thickness (Saddle Stitch) | Max. 2 mm or 0.075” (About 24 sheets of normal paper 64 gsm) (About 16 sheets of normal paper 81.4 gsm) |
| Stitch Distance | 73 to 290 mm or 2.875” to 11.4” Adjustable |
| Corner Stitching Position | 3 to 15 mm or 0.12” to 0.59” Adjustable |
| Trim Width | Max. 20 mm or 0.785” Min. 2 mm or 0.075” |
| Column 1 Value 10 | 4 mm or 0.155” |
| Production Speed | Max. 4,000 booklets per hour (A4-Finish, Portrait) Max. 3,500 booklets per hour (A5-Finish, Portrait) |
| Column 1 Value 12 | Column 2 Value 12 |
