HORIZON AFC 746F PFU yr.2011
Complete rubber coating of cylinders with polyurethane!!!

The top-of-the-line model AFC-746F sets entirely new standards for automation and power in B1 format combination folding machines. The AFC-746F is equipped with six parallel buckles and two cross knives and is optionally available with either a pallet or a continuous feeder. All sections, pocket stops, roller gaps, and the feeder can be set by entering the sheet size and fold type on the color touch screen with intuitive icons. Choose the type and format of the multiplicity from the touch screen. The machine then stops fully automatically. Set-up times are reduced to a minimum thanks to automation and specially developed software.

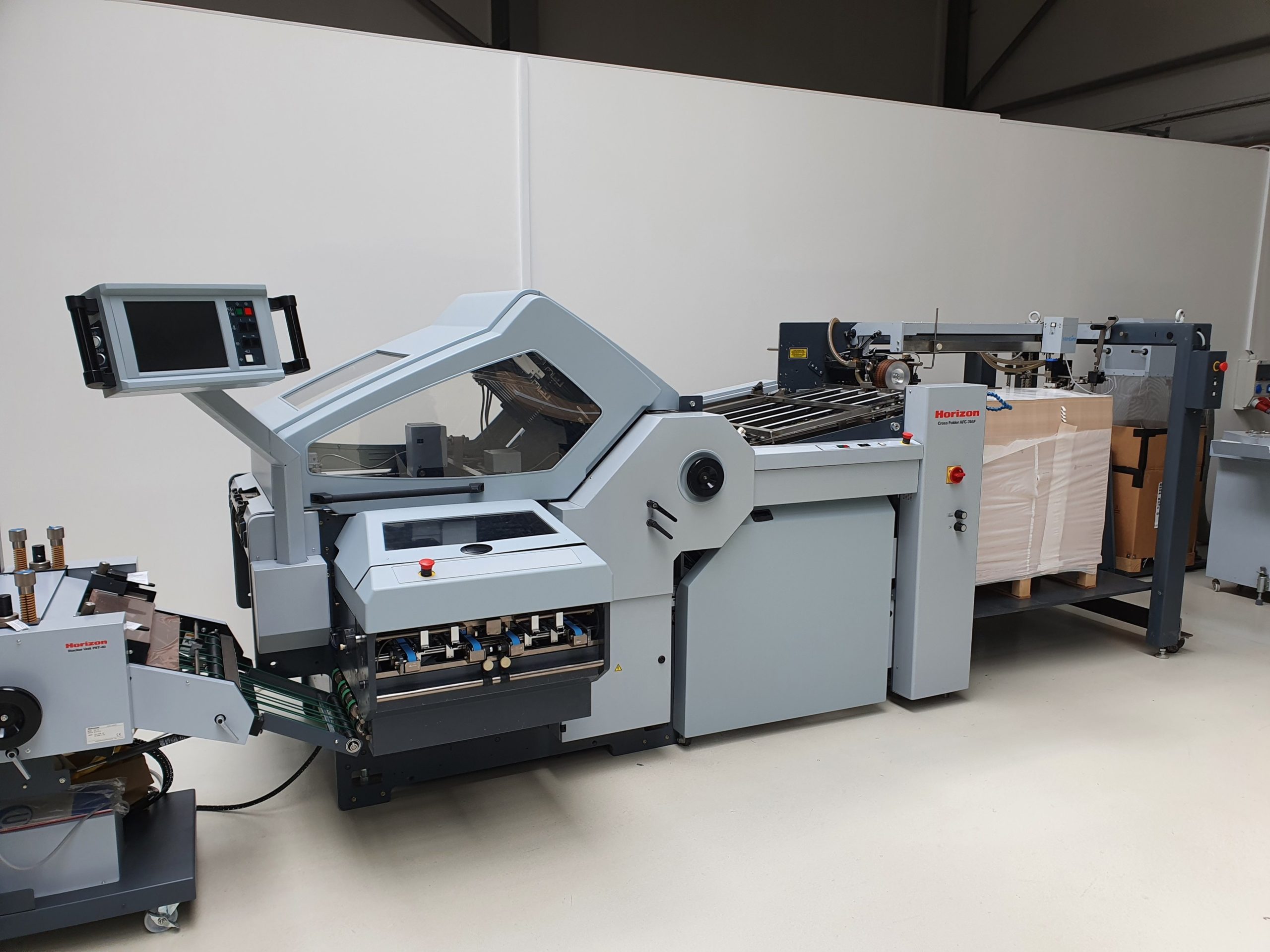

Refurbished folding machine Horizon AFC-746F with pallet feeder.

The machine is after a comprehensive refurbishing. The machine was cleaned and the following parts were replaced – Complete rubber coating of cylinders with polyurethane has been made, complete set of bearings, new belts, replacement of several consumable parts. The machine was adjusted and tested.

Year: 2011

Count: 28 876 055

Condition: Cleaned/ Refurbished

Refurbished parts: Complete rubber coating of cylinders with polyurethane!!!, complete set of bearings, new belts, replacement of consumable parts

Max. sheet size 738 x 1,100 mm (29.055” x 43.310”)
Min. sheet size 210 x 297 mm (8.270” x 11.695)
Folding size

1st fold:   55-560 mm (automatic)
2nd fold: 30-515 mm (automatic)
3rd fold: 30-480 mm (automatic)
4th fold: 30-480 mm (automatic)
5th folds: 30-480 mm (automatic)
6th folds: 30-330 mm (automatic)

Stack height 750 mm
Paper weight

Normal: 35 – 220 g/m²

Coated: 50 – 232 g/m²

Speed of production

Belt: 30 – 230 m/min. (99″ – 754″/min.)

Knife: 180 m/min. (590″/min)

  • The machine has been technically inspected and partially refurbished.

  • Cleaning has been done.

  • The machine can be viewed in our showroom.

Increase the efficiency of your business. Now the right time to invest in the refurbished Horizon machine.

We will be happy to help you choose the used or refurbished machine. Contact us and our experienced staff will give you a professional consultation and advise you on what machine will be best for your needs.

Can we help you? Do not hesitate to contact us!
