SOLD! HORIZON StitchLiner 5500 yr. 2007

V konfiguraci VAC-100c, 2x VAC-100m, VAC-100a, ST-40, ACF-30, SPF-30, HTS-30.

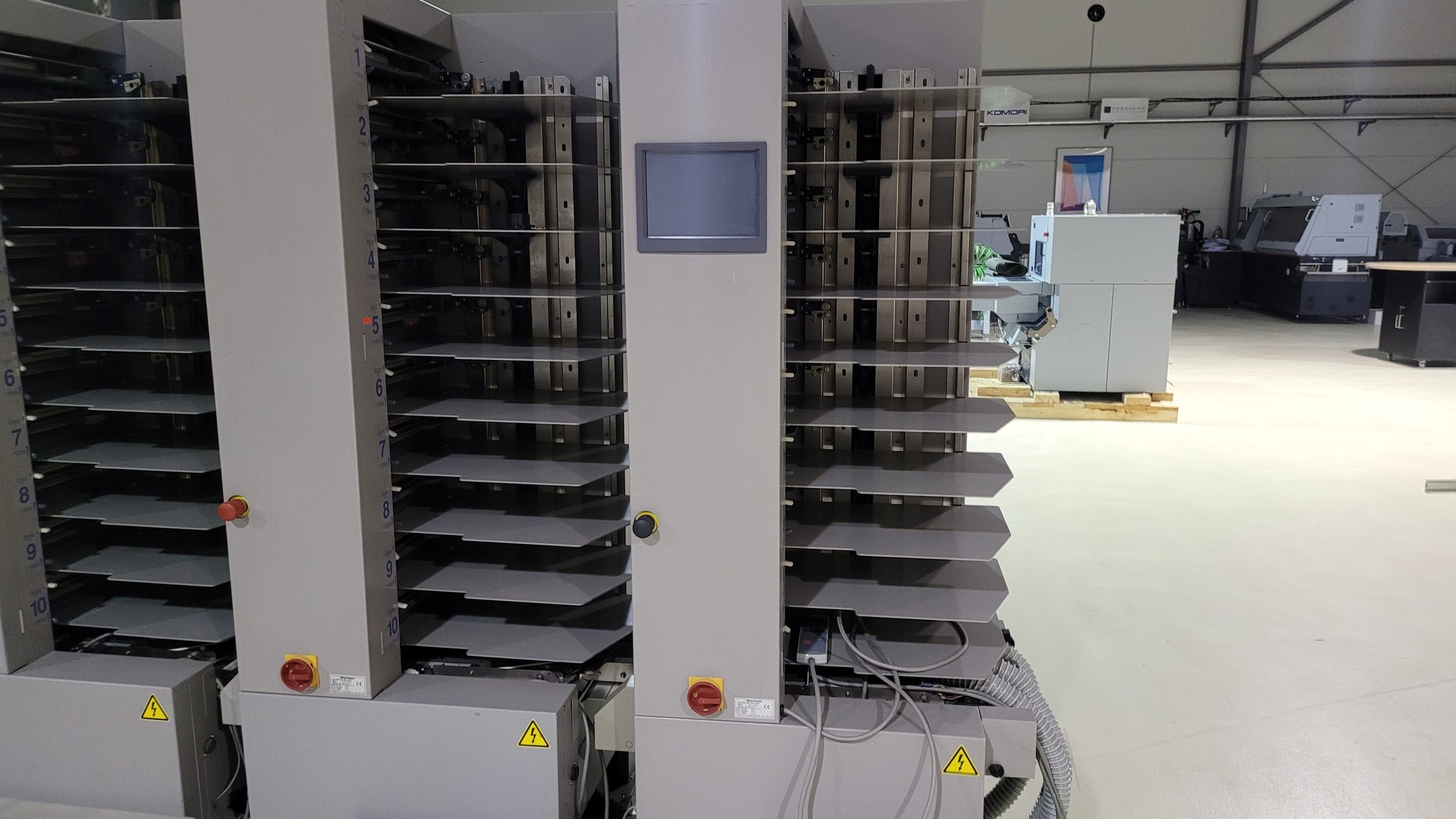

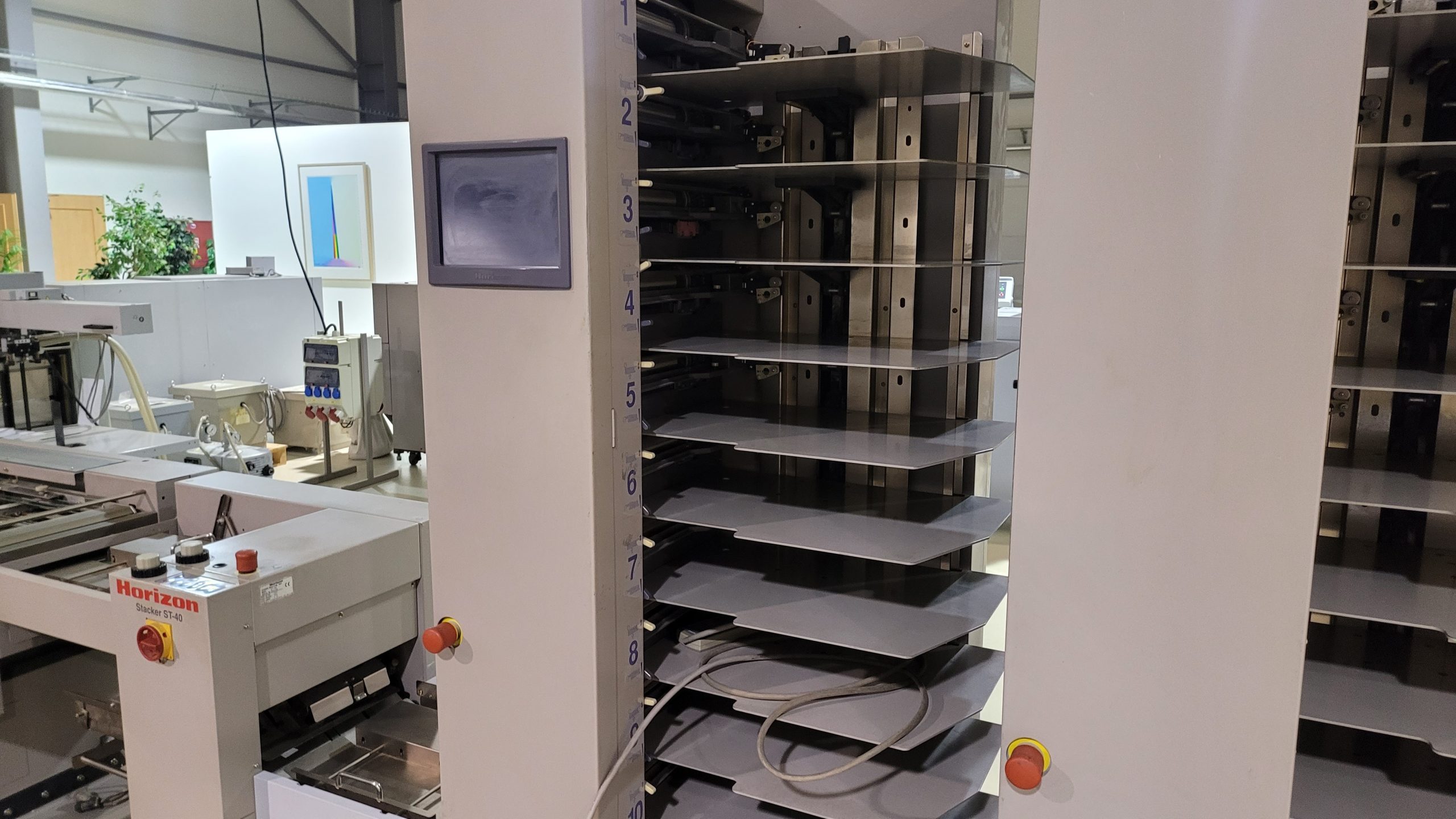

The StitchLiner 5500 is designed for the production of brochures at a production speed of up to 5,500 brochures per hour. Control via a touchscreen with graphic symbols offers intuitive operation, and along with the machine’s automatic setup system that doesn’t require tools, it guarantees short setup times between orders. The StitchLiner 5500 represents a combination of a vertical collator VAC-100/60 and a saddle stitcher with subsequent three-knife trimmer, allowing for processing a wide range of paper in a broad spectrum of combinations. Standardly, the system is equipped with a double-sheet detection system, staple control, and squareness control of the finished brochure, with the option of including equipment such as a split knife for two-up production (double speed), waste extraction, punching, additional Hohner 43/6S stitching heads in combinations of eyelet/classic, collator, pre-stacker, etc. Thanks to its modular composition, the line can be expanded at any time.

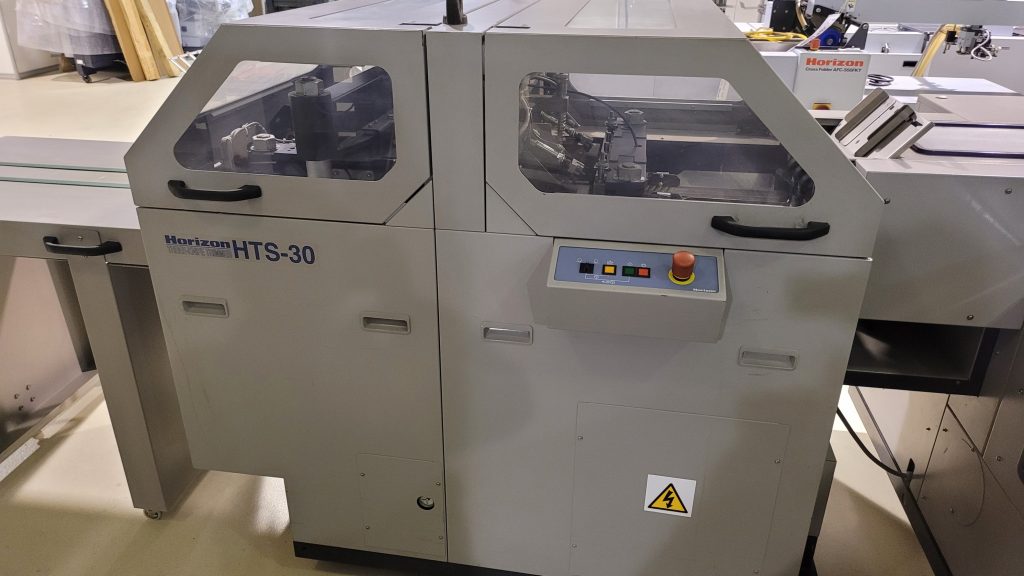

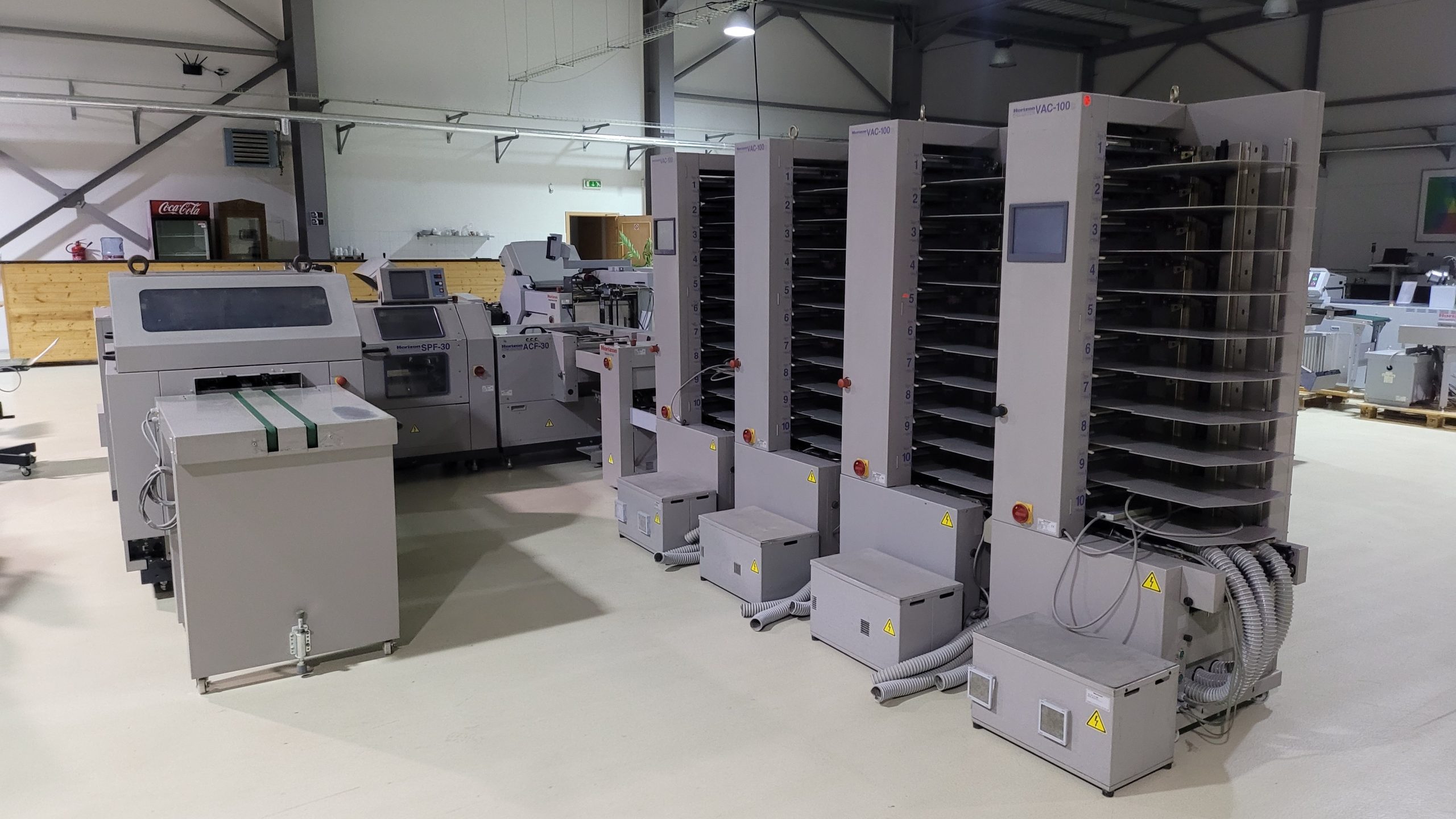

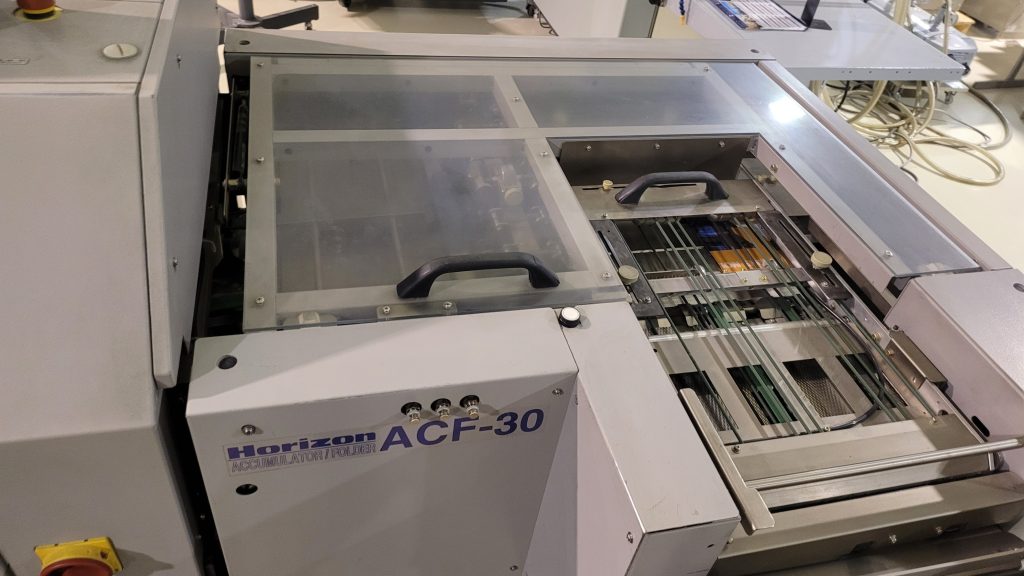

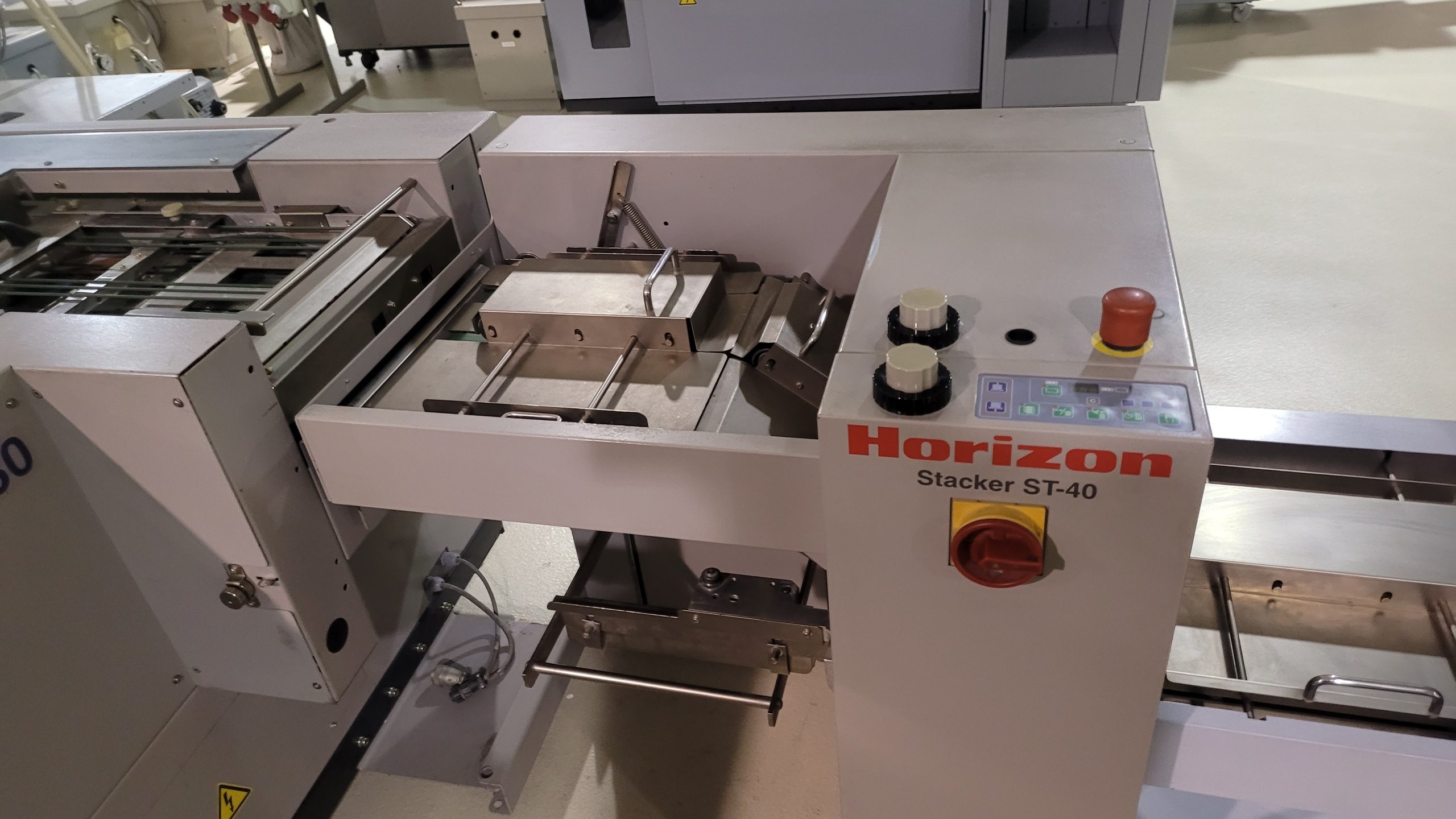

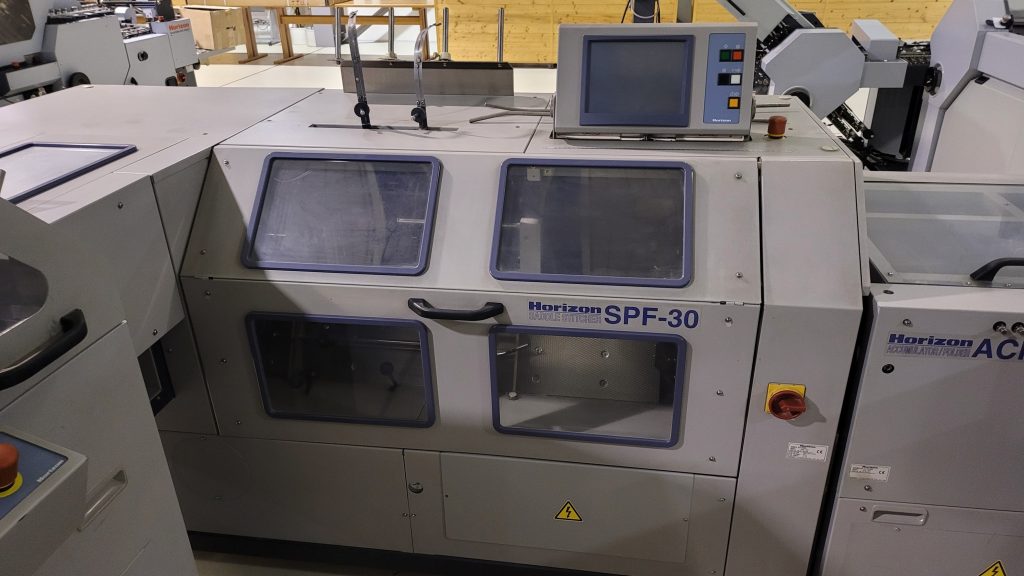

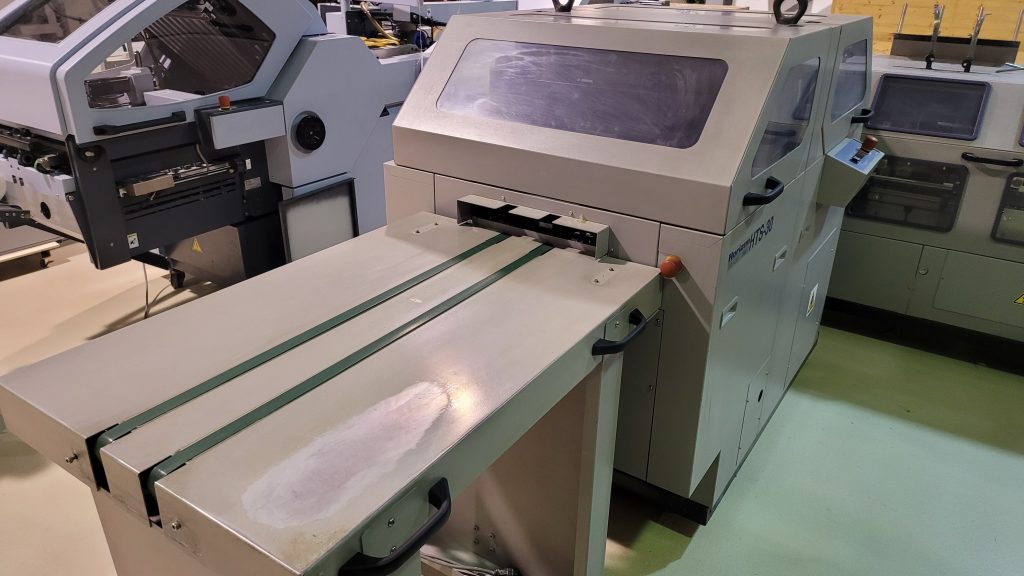

Cleaned Horizon StitchLiner 5500 with 2-4 towers (with configuration VAC-100c, 2x VAC-100m, VAC-100a, ST-40, ACF-30, SPF-30, HTS-30).

Year: 2007

Count: 6 404 000

Condition: Cleaned/ Adjusted/Funkcional

Max. book block size 350  x 500 mm
Min. book block size 140  x 199 mm
Max. brochure size 340 x 230 mm
Min. brochure size 90 x 95  mm
Book thickness 5 mm
Paper weight 64-210 g/m² (coated: 80-210 g/m²)
Max. pile height 55 mm/ bin
Speed of production až 5 500 cycles/hour


  • The machine has been technically inspected.

  • Cleaning was done.

  • The machine can be seen on our showroom.
